Air Conditioning Compressor - w/Clutch Massey Ferguson 362 383 390 398 393 399 3060 4235 4245 4255 365 375 3050 3120 3650 3545 4225 AGCO Challenger / Caterpillar White Allis Chalmers Landini CLAAS
Air Conditioning Compressor - w/Clutch Massey Ferguson 362 383 390 398 393 399 3060 4235 4245 4255 365 375 3050 3120 3650 3545 4225 AGCO Challenger / Caterpillar White Allis Chalmers Landini CLAAS

Air Conditioning Compressor - w/Clutch Massey Ferguson 362 383 390 398 393 399 3060 4235 4245 4255 365 375 3050 3120 3650 3545 4225 AGCO Challenger / Caterpillar White Allis Chalmers Landini CLAAS

$249.00 USD

All States Ag Parts
DE SOTO, IA
  • All of our new parts are aftermarket replacements. The use of original manufacturer's names and part numbers is for reference purposes only
  • Fits AGCO Tractor(s) DT160, DT180, DT200, DT225, LT70, LT75A, LT85, LT90A, RT95, RT115, RT130, RT145, 8775, 9735, 9745
  • Replaces AGCO OEM nos 1688310M1, 315.732.0
  • Fits Allis Chalmers Tractor(s) 8745, 8765, 8785, 9755, 9765, 9775, 9785
  • Fits Challenger / Caterpillar Tractor(s) MT425, MT425B, MT434, MT444, MT445, MT445B, MT454, MT455, MT455B, MT464, MT465, MT465B, MT476, MT535, MT545, MT565, MT635, MT645, MT655, MT665
  • Fits CLAAS Construction & Industrial(s) 925 Ranger, 928 Ranger, 964 Ranger, 975 Ranger
  • Fits Landini Tractor(s) 7880, 9080, 9880, 10000, 12500, 13000, 14500
  • Fits Massey Ferguson Tractor(s) 362, 365, 372, 375, 382, 383, 390, 390T, 393, 396, 398, 399, 471, 481, 491, 492, 573, 583, 593, 596, 650, 660, 680, 1014, 1024, 1114, 1134, 2465, 2650, 2670, 2680, 2685, 2725, 3050 (s/n C210010-later), 3060 (s/n C210010-later), 3065 (s/n C210010-later), 3070 (s/n C210010-later), 3075 (s/n C210010-later), 3080, 3085, 3090, 3095 (s/n C210010-later), 3115, 3120, 3125, 3140, 3505 (s/n L178203-later), 3525 (s/n L178203-later), 3545 (s/n L178203-later), 3610, 3630, 3635 (s/n C210010-later), 3645 (s/n C210010-later), 3650, 3655 (s/n C210010-later), 3660 (s/n C210010-later), 3670 (s/n C210010-later), 3680, 3690 (s/n C210010-later), 4225, 4233, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 5275, 5285, 5290, 5300, 5310, 5320, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 6130, 6140, 6150, 6160, 6170, 6180, 6190, 6235, 6245, 6255, 6260, 6265, 6270, 6280, 6290, 6350, 6360, 8110, 8120, 8140, 8150, 8160, 8210, 8220, 8240, 8245, 8250, 8260, 8270, 8280
  • Replaces Massey Ferguson OEM nos 3712528M2, 3386861M1, 3763384M91, 3777315M12, 3782613M2
  • Fits White Tractor(s) 6410, 6510, 6710, 6810, 8310, 8410, 8510 (s/n 2000-earlier), 8610 (s/n 2000-earlier), 8710, 8810
  • Replaces Mfg nos 4708
  • Model: Sanden Style SD7H15HD (w/ clutch)
  • Fitting Type: Rear Pad
  • Clutch: 5-1/2", 2 Groove - 1/2"
  • Voltage: 12
  • Head Type: QC
  • To validate warranty these steps need to be followed when installing: 1) Check Compressor prior to installation for air gap in clutch. 2) Check compressor for proper oil amount per manufacturers recommendation. 3) Flush A/C system with proper flush and flushing method. 4) Replace filter drier / accumulator. 5) Replace expansion valve / orifice tube. 6) Check for proper airflow through cooling fins of condenser and radiator. 7) Evacuate system to deep vacuum, 29.95 in.-HG, inches of vacuum. 8) Check for correct gas charge
  • R134A Refrigerant (12 oz.) use 121681
  • Freeze oil charge (4 oz.) use 121489
  • Air conditioning flush (32 oz.) use 121490
  • Air conditioning stop leak (4 oz.) use 121491
  • All new, rebuilt and used tractor parts have a 1-year warranty
  • All States Ag Parts Item No. 114077

Sales Tax

We are required by law to charge sales in IA, NE, MO, MN, SD and WI because we have physical locations in each of these states. While most farm use items and items for resale are tax exempt in these states we MUST have a tax exemption certificate on file prior to completing your tax exempt purchase. Please contact us at 866-609-1260 and we can send the proper form to you via fax or email. Once
Price $249.00 USD
Name Air Conditioning Compressor - w/Clutch Massey Ferguson 362 383 390 398 393 399 3060 4235 4245 4255 365 375 3050 3120 3650 3545 4225 AGCO Challenger / Caterpillar White Allis Chalmers Landini CLAAS
Category Cab Parts/Glass
Stock Number 114077
OEM Stock Number 3386861M1,3712528M2,3763384M91,3777315M12,3782613M2,1688310M1,315.732.0
All States Ag Parts Logo
All States Ag Parts

DE SOTO, IA

Similar Cab Parts/Glass Parts

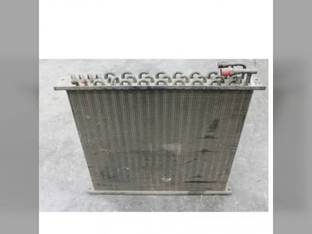

Used Condenser Case IH MX230 MX255 MX240 MX210 MX285 MX200 MX180 MX270 MX220 246841A2
