CV PTO Driveline 80 Degree 1-3/4" 20 AS Lock Compatible with Alamo 00763554 John Deere BW14545 BW15805 Land Pride 826-245C Rhino 00763554 Woods 1019100
CV PTO Driveline 80 Degree 1-3/4" 20 AS Lock Compatible with Alamo 00763554 John Deere BW14545 BW15805 Land Pride 826-245C Rhino 00763554 Woods 1019100

CV PTO Driveline 80 Degree 1-3/4" 20 AS Lock Compatible with Alamo 00763554 John Deere BW14545 BW15805 Land Pride 826-245C Rhino 00763554 Woods 1019100

$999.99 USD

All States Ag Parts
DE SOTO, IA
  • All of our new parts are aftermarket replacements. The use of original manufacturer's names and part numbers is for reference purposes only
  • Fits Alamo Rotary Cutter / Chopper(s) A141V, A201V, A415 (s/n A415-01001 Thur A415-14000), AG15IV (s/n 15-02106-later), AG96 (s/n 96-01465-later)
  • Replaces Alamo OEM nos 00763554
  • Fits John Deere Rotary Cutter / Chopper(s) CX15 (s/n 005317-later), CX20 (s/n 003526-later), HX15 (s/n 011945-later), HX20 (s/n 04520-later)
  • Replaces John Deere OEM nos BW14545, BW15805
  • Fits Land Pride Rotary Cutter / Chopper(s) RC5010 (s/n 214515-336516), RC5015 (s/n 214515-336516), RC6015 (s/n 388671-468557), RCBM6010, RCBM6015, RCF45180, RCM5015, RCM6010, RCM6015, RCM45180, RCR3515
  • Replaces Land Pride OEM nos 826-245C
  • Fits Rhino Rotary Cutter / Chopper(s) FL10M (s/n 10001-later), FL14 (s/n 10341-10699), FL15M (s/n 10001-later), FL20 (s/n 10341-10699), FM10 (s/n 10035-10200), FM15 (s/n 10035-10200), FS20 (s/n 01001-10217), SE10-4A, SE15-4 (s/n 10001-14811), SE15-4A, SR10 (s/n 10001-11270), SR10M (s/n 10001-18858), SR14 (s/n 10001-11410), SR15 (s/n 10001-11270), SR15M (s/n 10001-18858), SR20 (s/n 10001-11410), Turbo 120, TW120 (s/n 13640-later)
  • Replaces Rhino OEM nos 00763554
  • Fits Woods Rotary Cutter / Chopper(s) BW126-2, BW126Q-2, BW180Q-2, BW1260 (s/n 1050540-earlier), BW1260Q, BW1800 (s/n 1050540-earlier), BW1800Q
  • Replaces Woods OEM nos 1019100
  • AG96 (s/n AG96-01465-later)
  • Size: 2580
  • Length C-to-C: 48" 1210 mm
  • Total Length: 58"
  • Tractor: 1-3/4" - 20 AS Lock
  • Implement: 1-3/4" - 20 Clamp
  • RPM: 1000
  • Tube Style: B
  • It may be necessary to cut this driveline to length
  • Verify the length by ensuring that sufficient overlap of the drive tube sexists in all working positions without the possibility of bottoming out
  • All new, rebuilt and used tractor parts have a 1-year warranty
  • All States Ag Parts Item No. 124859

Sales Tax

Applicable sales tax will be charged.
Price $999.99 USD
Name CV PTO Driveline 80 Degree 1-3/4" 20 AS Lock Compatible with Alamo 00763554 John Deere BW14545 BW15805 Land Pride 826-245C Rhino 00763554 Woods 1019100
Category Drawbar/3pt/PTO
Stock Number 124859
OEM Stock Number 00763554,BW14545,BW15805,826-245C,00763554,1019100
Alamo Industrial A141V, A201V, A415, AG15IV, AG96
John Deere CX15, CX20, HX15, HX20
Land Pride RC5010, RC5015, RC6015, RCBM6010, RCBM6015, RCF45180, RCM45180, RCM5015, RCM6010, RCM6015, RCR3515
Rhino Ag 120, FL10M, FL14, FL15M, FL20, FM10, FM15, FS20, SE10-4A, SE15-4, SE15-4A, SR10, SR10M, SR14, SR15, SR15M, SR20, TW120
Woods BW1260, BW1260Q, BW126-2, BW126Q-2, BW1800, BW1800Q, BW180Q-2
All States Ag Parts Logo
All States Ag Parts

DE SOTO, IA

Similar Drawbar/3pt/PTO Parts

Used Draft Link Support Shaft Compatible with John Deere 6175M 6190R 6210R 7610 6195M 7430 6170R 7710 7800 6215R 7530 7700 6195R 7810 7600 6170M 6175R R108085
Used Draft Link Support Shaft Compatible with John Deere 6175M 6190R 6210R 7610 6195M 7430 6170R 7710 7800 6215R 7530 7700 6195R 7810 7600 6170M 6175R R108085

All States Ag Parts

DE SOTO, IA 50069

$230.00 USD

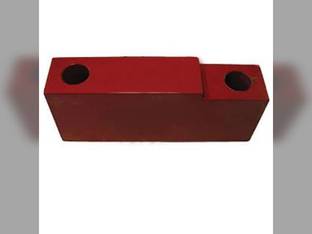

Drawbar Hammerstrap International 856 3688 2706 Hydro 100 986 5088 560 3388 1466 886 2856 766 1066 6388 3488 1086 3588 6588 826 706 966 3788 3288 Hydro 186 806 6788 1026 3088 1486 2756 786 756 1468
Drawbar Hammerstrap International 856 3688 2706 Hydro 100 986 5088 560 3388 1466 886 2856 766 1066 6388 3488 1086 3588 6588 826 706 966 3788 3288 Hydro 186 806 6788 1026 3088 1486 2756 786 756 1468

All States Ag Parts

DE SOTO, IA 50069

$237.00 USD

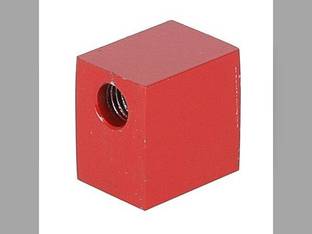

Drawbar Stop Block International 1566 1468 1466 1066 1568 Case IH 65300C1
