Drawbar John Deere 4030 4320 4230 4000 4040 4430 4020 R80842SPL
Drawbar John Deere 4030 4320 4230 4000 4040 4430 4020 R80842SPL

Drawbar John Deere 4030 4320 4230 4000 4040 4430 4020 R80842SPL

$129.00 USD

All States Ag Parts
DE SOTO, IA
  • All of our new parts are aftermarket replacements. The use of original manufacturer's names and part numbers is for reference purposes only
  • Fits John Deere Tractor(s) 4000, 4020, 4030, 4040, 4230, 4320, 4430
  • Replaces John Deere OEM nos R80842SPL
  • Straight without hammerstrap holes
  • Length: 45.00"
  • Width: 2.50"
  • Thickness: 1.375"
  • 6 front holes 1.015" diameter. 1.375", 2.625", 4.687", 7.345", 9.325", 12.590" from the front
  • All new, rebuilt and used tractor parts have a 1-year warranty
  • All States Ag Parts Item No. 108947

Sales Tax

We are required by law to charge sales in IA, NE, MO, MN, SD and WI because we have physical locations in each of these states. While most farm use items and items for resale are tax exempt in these states we MUST have a tax exemption certificate on file prior to completing your tax exempt purchase. Please contact us at 866-609-1260 and we can send the proper form to you via fax or email. Once you have completed the sales tax form and returned it to our offices (fax to 515-834-2196 or email to support@tractorpartsasap.com) we can remove the sales tax from your order.
Price $129.00 USD
Name Drawbar John Deere 4030 4320 4230 4000 4040 4430 4020 R80842SPL
Category Drawbar/3pt/PTO
Stock Number 108947
OEM Stock Number R80842SPL
John Deere 4000, 4020, 4030, 4040, 4230, 4320, 4430
All States Ag Parts Logo
All States Ag Parts

DE SOTO, IA

Similar Drawbar/3pt/PTO Parts

Used LH Sway Block John Deere 7320 6620 6610 6600 6530 6420 6430 6500 6510 6520 6630 7130 7230 7220 6100 6110 6120 6130 6200 6210 6220 6230 6300 6310 6320 6330 6400 6405 6410 L100865
Used LH Sway Block John Deere 7320 6620 6610 6600 6530 6420 6430 6500 6510 6520 6630 7130 7230 7220 6100 6110 6120 6130 6200 6210 6220 6230 6300 6310 6320 6330 6400 6405 6410 L100865

All States Ag Parts

DE SOTO, IA 50069

$47.00 USD

Used Center Link Assembly International 1568 1206 1566 21456 1466 1066 1456 21206 1468 404632R91
Used Center Link Assembly International 1568 1206 1566 21456 1466 1066 1456 21206 1468 404632R91

All States Ag Parts

DE SOTO, IA 50069

$150.00 USD

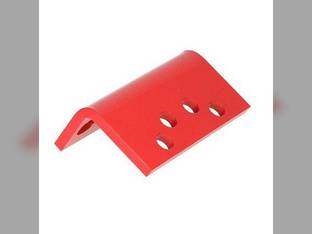

Stabilizer Arm Mounting Bracket Massey Ferguson TO30 135 TO20 230 50 150 TO35 35 245 235 Ford NAA 9N 600 8N 2N 800 231254B 231254R 49B50B 49B50R SA631
Stabilizer Arm Mounting Bracket Massey Ferguson TO30 135 TO20 230 50 150 TO35 35 245 235 Ford NAA 9N 600 8N 2N 800 231254B 231254R 49B50B 49B50R SA631

All States Ag Parts

DE SOTO, IA 50069

$11.50 USD

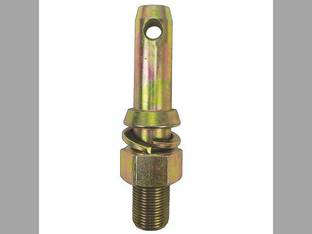

Lift Arm Pin 6-1/8" 2" Category 2 319522M1 S.201 319522M91
