Blue Diamond - Skid Steer Brush Cutter Direct Drive Closed Front 72" Extreme Duty
Blue Diamond - Skid Steer Brush Cutter Direct Drive Closed Front 72" Extreme Duty

Blue Diamond - Skid Steer Brush Cutter Direct Drive Closed Front 72" Extreme Duty

$7,984.99 USD

All States Ag Parts
DE SOTO, IA
  • All of our new parts are aftermarket replacements. The use of original manufacturer's names and part numbers is for reference purposes only
  • Fits Skid Steer Loader Attachments Universal Parts(s) Brush & Rotary Cutters
  • Blue Diamond Skid Steer, Brush Cutter, Extreme Duty, Direct Drive, Closed Front, 72"
  • The tapered back allows cut debris to roll out consistently and helps to float over stumps
  • The deck is thicker and uses above and under deck reinforcements in high stress areas
  • Also added are wear bars on the sides to give longer life if used in abrasive ground conditions
  • Solid 3/4? thick blade carrier
  • The heavily reinforced deck has many new features for strength and to make it easier to clean
  • Rear of deck is tapered out to help with discharge and ease of clearing stumps
  • Thicker deck (1/4?)
  • Heavy wear bars added to the bottoms of each side for longer life
  • Easier to clean debris off deck
  • Chain curtain on front
  • The direct drive bearing carrier is now grease packed and can be greased from a zerk under the hood
  • Under the deck, instead of a spline shaft, it has a 13” x 1” flange with 10 bolts connecting the blade carrier
  • The purpose built hydraulic motor drives a 3.5” forged one piece drive spindle! that is housed in 2 massive bearings
  • Has 4 double edged blades
  • The wire protection kit between the deck and the blade carrier keeps fence wire and vines away from the lower bearing seal and reduces down time from hidden debris
  • The 10” deck clearance and the raised back allow cut debris to escape and to easily avoid bunching under the deck
  • Requires only 16 GPMs
  • Cuts up to 5" trees
  • Bearing seal protection kit under the deck
  • No case drain needed on low flow units
  • New faster acting external cross port relief and brake
  • New longer lasting stamped blades
  • Available in low or high flow
  • Blue Diamond offers a two year warranty
  • Made in the U.S.A.
  • Item ships via freight carrier please call 1-866-609-1260 for a freight quote
  • All new, rebuilt and used tractor parts have a 1-year warranty
  • All States Ag Parts Item No. 159068

Sales Tax

Applicable sales tax will be charged.
Price $7,984.99 USD
Name Blue Diamond - Skid Steer Brush Cutter Direct Drive Closed Front 72" Extreme Duty
Category Misc
Stock Number 159068
ASV Attachments
Bobcat Attachments
Case Attachments
Caterpillar Attachments
Daewoo Attachments
Fiat Attachments
Ford Attachments
Gehl Attachments
Hydra-Mac Attachments
International Attachments
John Deere Attachments
Komatsu Attachments
Lahman Attachments
LiuGong Attachments
Massey-Ferguson Attachments
Mustang Attachments
New Holland Attachments
Owatonna Attachments
Scat Trak Attachments
Takeuchi Attachments
Thomas Attachments
Universal Skid Steer Attachments
Volvo Attachments
Wacker Attachments
All States Ag Parts Logo
All States Ag Parts

DE SOTO, IA

Similar Misc Parts

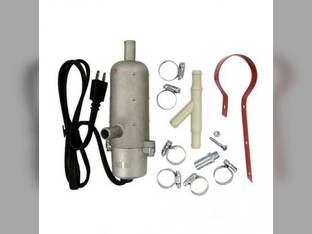

Kat's External Tank Engine Heater Thermostatically Controlled 2000 Watt 120V
Kat's External Tank Engine Heater Thermostatically Controlled 2000 Watt 120V

All States Ag Parts

DE SOTO, IA 50069

$130.99 USD

TRAIL-JET, JD 1
TRAIL-JET, JD 1

S.I. Distributing

SPENCERVILLE, OH 45887

$0.00 USD

SCH KIT, NH 111
SCH KIT, NH 111

S.I. Distributing

SPENCERVILLE, OH 45887

$0.00 USD

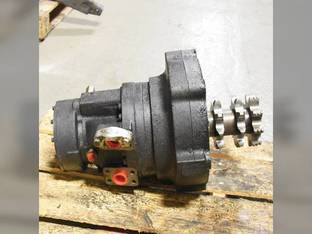

Used Hydraulic Drive Motor Compatible with Bobcat S630 A770 S650 S750 S850 S740 S770 7253515
