DETAILS
| Price | Contact for Price |
| Year | 0 |
| Make | XCMG |
| Model | XE27U |
| Stock # | 4420020007941 |
| Id | 8533194 |
| New | New |
| Overall Condition | In-Stock |
| StateId | 27 |
| UpdatedAt | 2/17/2026 11:18:21 AM -05:00 |
Description

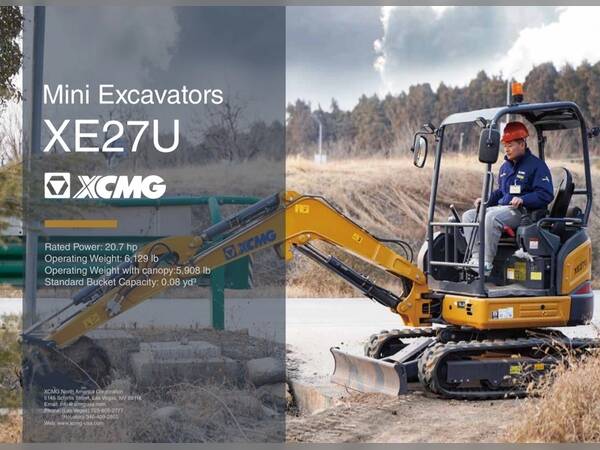

| XCMG XE27U Mini Excavator — KUBOTA Diesel Power + Smooth, High-Pressure Hydraulics (2.7-Ton Class) If you want a mini that feels like a “name brand” machine the second you put your hands on the controls, the XCMG XE27U is it. You get Kubota Tier 4 Final diesel reliability up front, a load-sensing, variable-displacement piston pump for smooth multi-function operation, serious 3,524 PSI working pressure, and a stable undercarriage that’s built to take daily contractor abuse. This is a money-maker for utility trenching, irrigation, landscaping, concrete prep, drainage work, light demolition, and tight-access excavation—with the power and control you need to finish faster and cleaner. ⭐ What Matters Right Away ✅ Engine: KUBOTA D1105 (Tier 4 Final) Make/Model: Kubota D1105 / Tier 4F Cylinders: 3 Power (ISO 14396): 20.7 hp @ 2400 rpm Max torque: 51.9 ft-lb @ 1600 rpm Fuel/Cooling: Diesel / Liquid, forced circulation Bore × stroke: 3.1 in × 3.1 in Alternator: 12V – 40A Piston displacement: 0.29 gal ✅ Smooth + strong hydraulics Pump type: Load-sensing axial-piston pump with variable displacement Total hydraulic capacity: 21.9 gal/min AUX1 & AUX2 max flow: 6.6 gal/min AUX1/AUX2 relief pressure: 2,610.7 / 2,610.7 psi Max system pressure: 3,524.4 psi Boom: 3,524.4 psi Arm / bucket / travel: 3,524.4 / 3,524.4 / 3,524.4 psi Swing: 2,349.6 psi ✅ Digging force (ISO 6015) Arm digging force (long arm): 3,147.3 lbf Bucket digging force: 5,170.6 lbf Size, Weight, and Bucket Operating weight (cab): 6,129 lb Operating weight (canopy): 5,908 lb Transport mass (no attachment): 5,842.2 lb Standard bucket capacity: 0.08 yd³ Ground pressure (cab): 3.8 psi Ground pressure (canopy): 3.7 psi Weight of steel tracks: 440.9 lb Weight of rubber tracks: 296.5 lb Swing System (Boom Swing + Slew) Boom swing: 75° left / 55° right Swing speed: 10 rpm Swing mechanism details: high-torque axial piston motor, planetary reduction gear (oil-bathed), single-row shear-type ball bearing with induction-hardened internal gear; automatic multi-disc slew brake. Travel / Drive Each track is driven by an independent high-torque axial piston motor through planetary reduction gears. Travel speed (low–high): 1.2 – 1.9 mph Traction force: 6,676.8 lbf Gradeability: 30° Two control levers provide smooth travel or counter-rotation on demand. Undercarriage (X-type) Heavy-duty fully welded crawler chassis, stress-free structure. Bottom rollers (per side): 3 Track shoes: Rubber Overall track length: 6'6" Shoe width: 12" Fluid Capacities Cooling system (radiator capacity): 1.7 gal Engine lubrication + oil filter: 1.4 gal Fuel tank: 8.7 gal Hydraulic tank: 5.8 gal Hydraulic system: 10.6 gal Noise Levels (Dynamic Values) LpA (ISO 6396): 79 dB(A) LwA (ISO 6395): 93 dB(A) Dimensions Overall length: 13'9" Overall width: 4'11" Overall height: 8'6" Width of platform: 4'5" Length of crawler: 6'6" Width of chassis: 4'11" Width of crawler: 12" Distance between tumblers: 5'1" Track gauge: 3'11" Counterweight clearance: 21" Minimum ground clearance: 11" Minimum tail swing radius: 31" Track height: 18" Working Range Max digging height: 14'5" Max dumping height: 10'3" Max digging depth: 9'2" Max vertical wall digging depth: 7'7" Max digging radius: 15'7" Minimum swing radius: 6'6" Max dozer lifting height: 12" Max dozer cutting depth: 13" Boom deflection distance (L/R): 24" / 23" Lifting Capacities (ISO 10567) — Standard Arm 4'3", Without Bucket With CAB Over Front (Blade Up/Down) — Lift at max radius (lb) Lift Point Height 9'10" @ 3'3" 886.3 | 6'7" 959 | 9'10" 639.3 | 13'1" 793.7 6'7" @ 3'3" 683.4 | 6'7" 1,056 | 9'10" 485 | 13'1" 771.6 3'3" @ 3'3" 621.7 | 6'7" 1,867.3 | 9'10" 1,003 | 13'1" 648.2 Ground @ 3'3" 639.3 | 6'7" 1,743.9 | 9'10" 948 | 13'1" 447.5 -3'3" @ 3'3" 771.6 | 6'7" 2,709.5 | 9'10" 1,750.5 | 13'1" 937 -6'7" @ 3'3" 1,047.2 | 6'7" 1,314 | 9'10" 1,025.2 | 13'1" 1,239 Over Side — Lift at max radius (lb |
